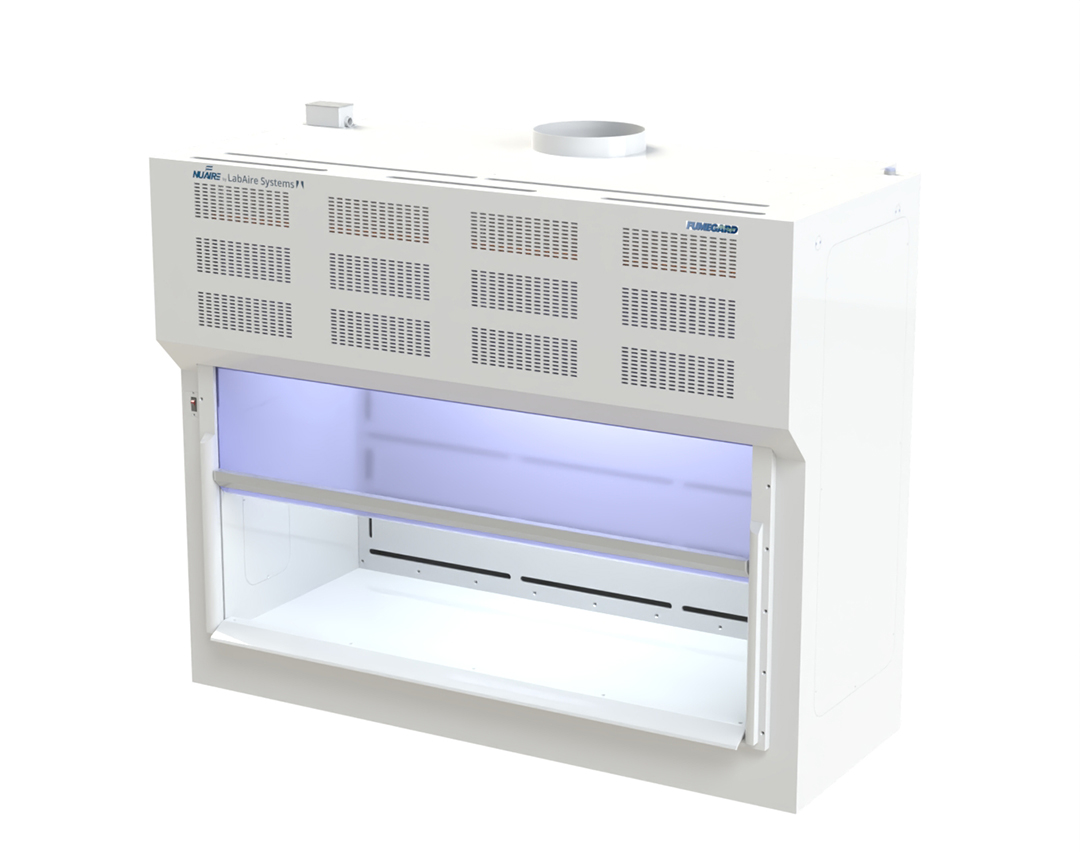

FumeGard NU-164 Polypropylene Variable Air Velocity Fume Hood

SKU: NU-164 Category:

The FumeGard NU-164 Variable Air Velocity fume hood is constructed from polypropylene and incorporates a bypass system to maintain a Constant Volume of Airflow (CAV). With the sash closed, air is redirected at the top of the hood, resulting in a slower increase in face velocity compared to conventional fume hoods. The deflector vane ensures airflow across the work surface, providing a permanent opening even when the sash is closed.

Description

The NU-164 Bypass Fume Hood – now from LabAire Systems*, is a dependable solution for your laboratory needs whether you require a hood for acid digestion, trace metals or other laboratory analysis functions.

Equipped with an eye-level Control Center, this chemical fume hood allows easy control of exterior mounted fluorescent lights and optional electrical devices. The NU-164 can be tailored to meet your specific wet lab requirements. Its standard features include stress-relieved polypropylene construction, a counterbalanced polycarbonate view screen, and an interior fluorescent lighting system.

Choose from a range of optional features including PVDF lined interior or flame retardant polypropylene construction, varied work surfaces, and airflow alarm systems. Remote controlled service valves and custom sinks are also available. The FumeGuard NU-164 is offered in four models with varying dimensions and electrical requirements.

*Experience the safety, efficiency, and convenience you have always trusted from the FumeGard Series laboratoy fume hoods, manufactured under license by NuAire®, Inc.

Industries served

  • Analytical Chemistry
  • Trace Metal Analysis
  • Water Treatment
  • Toxicology
  • Salt Water and Marine Science
  • Semiconductor Manufacturing
  • Food and Beverage

Standard Features

  • ½” (13 mm) Stress-relieved all seam-welded polypropylene construction
  • All negative pressure interior
  • Air bypass for more uniform face velocity during view screen manipulation
  • Counterbalanced polycarbonate view screen slides 18” (457 mm) maximum opening to fully closing
  • Flush-mounted exterior/interior plumbing chase access panel
  • Connection provided for venting a base cabinet
  • Removable rear baffle for maintenance
  • Work surface is reinforced 1⁄2” (13 mm) thick polypropylene
  • Lower work access opening airfoil
  • PVC electrical junction box
  • Sealed (2) bulb LED lighting
  • Rectangle to round exhaust connection
  • Flush mounted exterior/interior plumbing access panels

Optional Features

  • PVDF lined interior or flame retardant polypropylene
  • Epoxy resin work surfaces
  • TEL air flow monitor/alarm
  • Remote-controlled service valves available in PVC, PVDF, or polypropylene
  • Cascade or single rinse tanks with/without nitrogen purge
  • Rear exhaust duct wash-down system
  • Polypropylene, or PVDF gooseneck faucets
  • Deionized water or nitrogen PVDF spray guns
  • PVDF, or polypropylene dip tanks with or without drains
  • PVDF liquid/air aspirators to siphon chemicals
  • Polypropylene exhaust damper
  • Cup sink or custom size sinks, chemically-resistant P-trap
  • Acid (vented) and flammable base cabinets
  • Acid digestion – lattice “monkey bar”
  • ADA design configuration
  • 220V / 50 Hz

Overall Dimensions

Work Area Dimensions

Exhaust Requirements

Shipping Weight

Standards

  • ANSI/ASHRAE Standard 110
  • SEFA 1
  • UL-1805
  • CE

Downloads

Related Products

Disclaimer: This document is intended to convey potential product configurations and offerings.  It is the responsibility of the customer to communicate specifications and product performance requirements that are needed for their application.  It is not to be used to imply or represent a specification or rating, of finished products shipped.  It is the responsibility of the customer to specify product accordingly to comply with local laws, codes, and ordinances.
