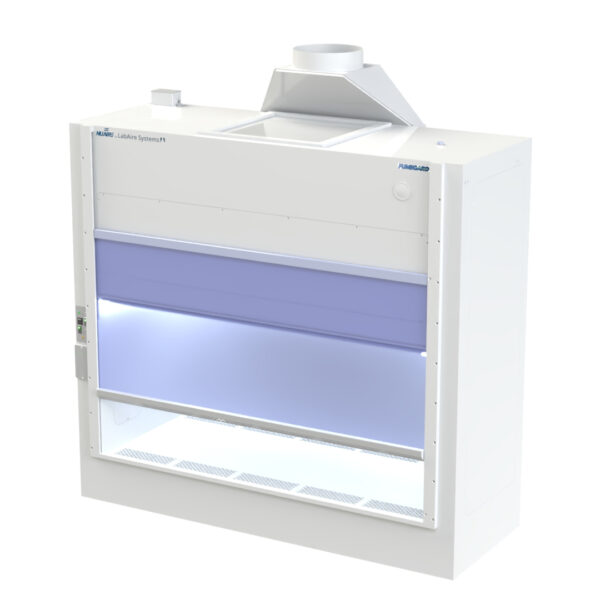

FumeGard NU-156 Polypropylene Vertical Laminar Airflow Fume Hood

SKU: NU-156 Category:

Now from LabAire Systems, the FumeGard NU-156 Vertical Laminar Flow Fume Hood is designed to meet the strict requirements of NSF 49. This cutting-edge polypropylene fume hood is equipped with a high-efficiency particulate air (HEPA) filtration system, ensuring optimal air quality within the enclosed workspace. With its Vertical Laminar Flow (VLAF) design, this hood provides unparalleled product protection and creates a clean environment by directing airflow downward. TheFumeGard NU-156 fume hood design effectively mitigates any potential contamination risks, making it ideal for high acid use.

Description

Introducing the FumeGard NU-156 – now from LabAire Systems*, designed to meet the stringent standards set by NSF 49. Standard features include all polypropylene hood construction, a polycarbonate view screen with 10″ access opening and electronic monitoring of exhaust and air supply. Polypropylene is specified for its chemical resistance, hydrophobic and impact-resistance in addition to superior rust-free performance when compared to metal laboratory fume hoods.

When it comes to product protection, the NU-156 Vertical Laminar Airflow Fume Hood sets new industry standards. Engineered with precision and efficiency in mind, this fume hood ensures that your experiments and processes are carried out in the most secure and clean environment possible. The VLAF feature, combined with the HEPEX™ filtration system, provides a reliable barrier against any potential risks, safeguarding your laboratory personnel and valuable work at all times, even when used as an acid digestion fume hood or for corrosive chemical analysis.

Choose this reliable and effective lab fume hood for unparalleled product protection and peace of mind. Experience the pinnacle of safety and efficiency with our NSF 49 compliant, HEPA-filtered, Vertical Laminar Airflow Workstation.
*Manufactured under license by NuAire®, Inc.

Industries Served

  • Analytical Chemistry
  • Trace Metal Analysis
  • Water Treatment
  • Toxicology
  • Salt Water and Marine Science
  • Semiconductor Manufacturing
  • Food and Beverage

Standard Features

  • HEPEX™ Zero Leak Air Flow System
  • Large separatorless HEPA filters, 99.99% Efficient on 0.3 micron particles
  • PVC diffuser over supply HEPA
  • ½” (13 mm) Stress-relieved all seam-welded polypropylene
  • Vented and plumbed spill trough plenum under work surface
  • ¼” (6 mm) Polycarbonate with Margard® view screen with 10” (254 mm) access opening at 105 lfpm
  • Removable work surface
  • Front filter removal without removing view screen
  • Polypropylene blower/HEPA filter module
  • Sealed interior strip LED lighting to 100 fc
  • Magnehelic gauge to monitor supply plenum encased in polypropylene housing with window
  • Exhaust monitor and alarm with interlock on supply blower
  • Flush-mounted interior & exterior plumbing access panels
  • Modular electrical component construction sealed in PVC case with access panel
  • Solid state motor voltage regulator
  • Rectangle to round exhaust connection

Optional Features

  • ULPA filters: 99.999% efficient on 0.12 micron particles
  • Remote-controlled service valves available in PVC, PVDF, Teflon® or polypropylene
  • Duplex outlets with PVC covers
  • Cascade rinse tanks with nitrogen purge
  • Deionized water or nitrogen PVDF spray guns
  • Teflon, PVDF, or polypropylene dip tanks with or without drains
  • Remote-controlled polypropylene, PVC or PVDF gooseneck faucets
  • ADA design configuration
  • 220V / 50 Hz
  • Flame-retardant polypropylene, PVDF or Halar – lined work zone
  • PVDF liquid/air aspirators to siphon chemicals
  • Fully perforated work surface (10% open)
  • Polypropylene rectangle-to-round exhaust transitions
  • Cup sink or custom size sinks
  • Acid (vented) and flammable base cabinets

Overall Dimensions

Work Area Dimensions

Exhaust Requirements

Shipping Weight

Standards

  • ANSI/ASHRAE Standard 110
  • SEFA 1
  • UL-1805
  • CE
  • NSF/ANSI 49

Downloads

Related Products

Disclaimer: This document is intended to convey potential product configurations and offerings.  It is the responsibility of the customer to communicate specifications and product performance requirements that are needed for their application.  It is not to be used to imply or represent a specification or rating, of finished products shipped.  It is the responsibility of the customer to specify product accordingly to comply with local laws, codes, and ordinances.
